What is the manufacturing process of LED lights?

Time of Release : 2023-10-07

The manufacturing process of LED lights involves several stages, including the production of LED chips, encapsulation, and assembly. Here is a general overview of the manufacturing process:

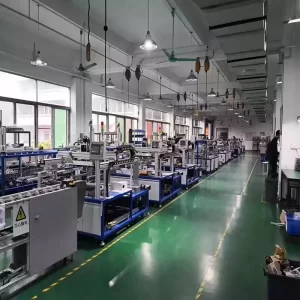

led light production line

LED Chip Production

The first step in manufacturing LED lights is the production of LED chips. This process typically involves creating a wafer from a semiconductor material, such as gallium arsenide (GaAs) or gallium nitride (GaN). The wafer is then processed to form numerous individual LED chips. This is done through techniques like epitaxial growth, photolithography, etching, and doping.

Encapsulation

Once the LED chips are produced, they need to be encapsulated to protect them and enhance their performance. Encapsulation usually involves the following steps:

2.1. Substrate Attachment: The LED chips are mounted onto a substrate, which provides support and electrical connection. Common substrates include ceramic or metal-core printed circuit boards (PCBs).

2.2. Wire Bonding: Thin wires made of gold or aluminum are attached to the LED chip's electrodes and the substrate. These wire bonds establish electrical connections.

2.3. Encapsulation Material Application: The LED chips and wire bonds are covered with an encapsulation material, typically a transparent epoxy resin, which protects the chip from environmental factors and provides optical effects, such as focusing and diffusing the light.

Color Conversion (Optional)

For LED lights that require different colors, such as white LEDs, an additional step called color conversion may be involved. This process uses phosphor materials that convert the blue light emitted by the LED chip into other colors, such as white or warm white. The phosphor is typically applied as a coating or mixed with the encapsulation material.

Assembly

After the encapsulation process, the LED chips are assembled into a complete LED light unit. The assembly process usually includes the following steps:

4.1. Lead Frame Attachment: The encapsulated LED chips are mounted onto a lead frame, which provides electrical contacts and mechanical support.

4.2. Lead Forming: The leads of the lead frame are bent and shaped according to the desired package design.

4.3. Mold Injection: The LED chips and lead frame are placed in a mold, and a clear or colored epoxy resin is injected to form the final package. This step provides additional protection and facilitates easy mounting of the LED light.

4.4. Trimming and Testing: The lead frame is trimmed, and individual LED units are inspected and tested for performance, brightness, color consistency, and other quality parameters.

Additional Processes: Depending on the specific requirements, additional processes may be involved in the manufacturing of LED lights. These can include processes like phosphor application, lens attachment, heat sinking, thermal management, and final testing.

It's important to note that this is a simplified overview of the manufacturing process, and each manufacturer may have variations and optimizations specific to their production methods. However, the general steps mentioned above provide an understanding of the key stages involved in producing LED lights.
